GEIT group 6*1600 mm Cutting to length line

DATE:6/16/2019 HIT:384 SOURCE: AUTHOR:

GEIT group 6*1600 mm Cutting to length lineGEIT group 6*1600 mm Cutting to length line
  • GEIT group 6*1600 mm Cutting to length line
  • GEIT group 6*1600 mm Cutting to length line

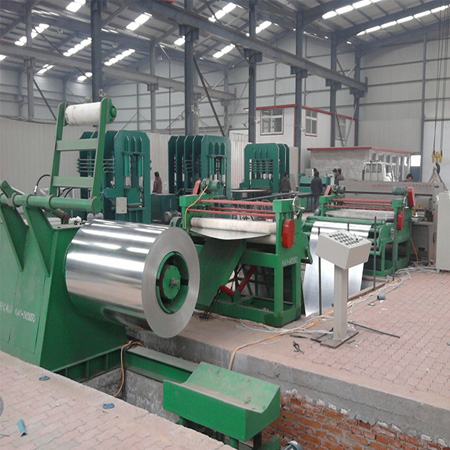

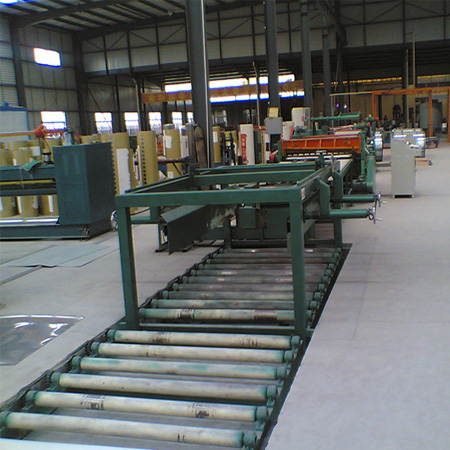

HJ-1600 automatic cut to length line, it is used to make the steel coil straighten and cut to a specified length.


Technological process

Coil car-----uncoiling---straightening ----shearing machine-----stacking and piling system


HJ-1600 Technical parameter

Equipment name

Parameter

Control system

PLC DC control

Material

Carbon steel

Steel strip thickness

1-6mm

Steel strip width

1600mm

Steel coil I.D.

∅500mm-∅800mm

Steel coil O.D.

≤∅2000mm

Coil weight

30tons

Diameter of leveling rollers

125 mm

Distance of leveling rollers

135mm

Number of leveling rollers

13

Material of leveling rollers

GCr15

Material of cutter glade

6CrW2Si

Cutting speed

≤30m/min

Direction of feed material

From left to right

Length tolerance

L=2m≤1mm

Diagonal tolerance

L=2m≤±1.5mm

Power

380V/50Hz/3PH
