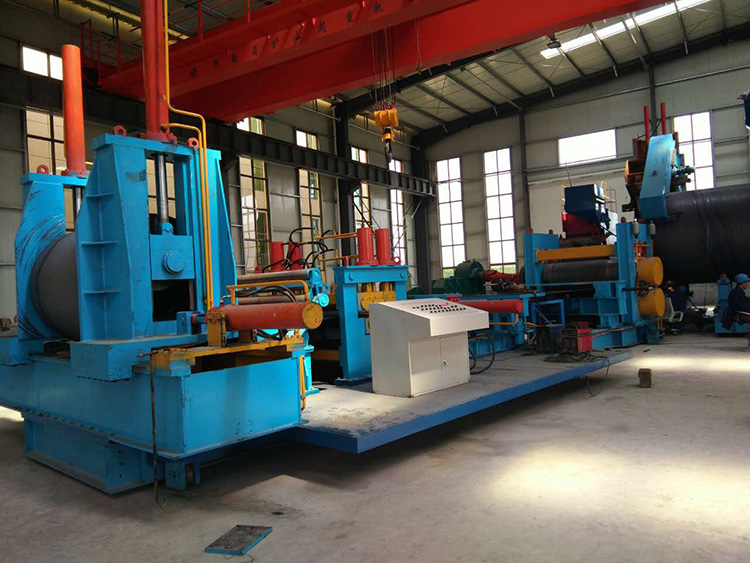

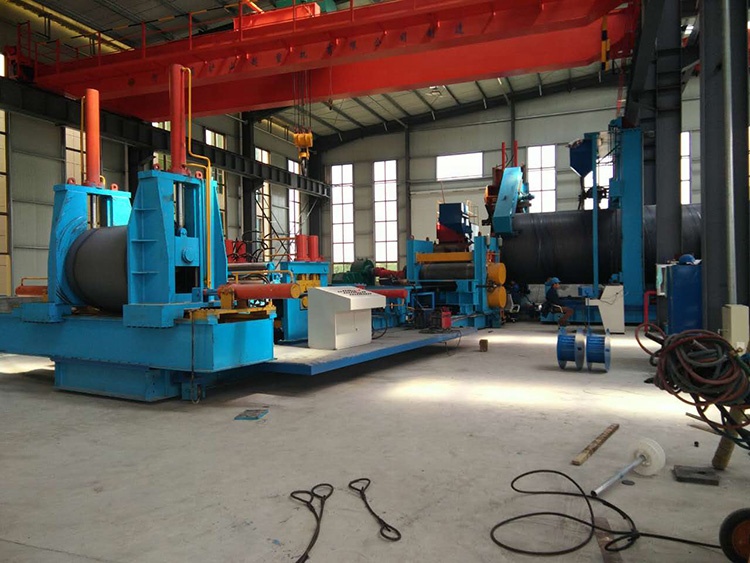

820-3220mm SSAW pipe production mill

DATE:6/11/2019 HIT:47 SOURCE: AUTHOR:

820-3220mm SSAW pipe production mill820-3220mm SSAW pipe production mill820-3220mm SSAW pipe production mill
  • 820-3220mm SSAW pipe production mill
  • 820-3220mm SSAW pipe production mill
  • 820-3220mm SSAW pipe production mill

Production application:

1.Low pressure fluid transfer pipeline, city gas transport and water supply and drainage pipeline;

2.Piling steel pipe for engineering construction;

3.Steel pipe for industrial structure;

4.Steel pipe for other uses.


Materials Details

Material

Q235,Q345,X42-X70

Steel coil O.D.

∅1200mm-∅2000mm

Steel coil I.D.

∅508mm-∅762mm

Steel coil width

1000mm-1500mm

Steel plate thickness

5mm-22mm

Max. weight

30tons

Welding Details

Welding type

Submerged-arc welding

Welding speed

0.5-2.6m/s

Delivering speed

0.5-3m/s

Power Details

Voltage

AC 380V/220V

Compressed air

0.4-0.6Mpa

Installed capacity

~200KW

Production Pipe Details

Pipe O.D.

∅820mm-∅3220mm

Pipe wall thckness

5-22mm

Helical angle

40°-80°

Pipe length

8-40m
