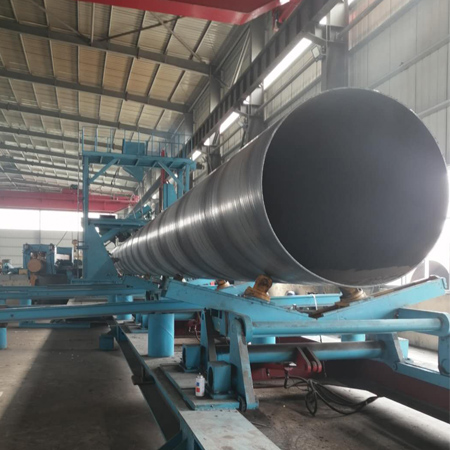

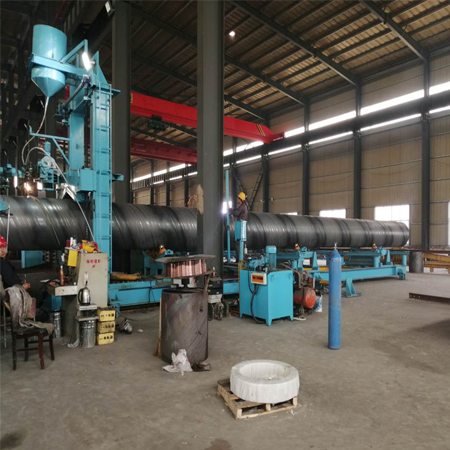

219-1620 mm SSAW pipe production line

DATE:6/10/2019 HIT:88 SOURCE: AUTHOR:

219-1620 mm SSAW pipe production line219-1620 mm SSAW pipe production line219-1620 mm SSAW pipe production line
  • 219-1620 mm SSAW pipe production line
  • 219-1620 mm SSAW pipe production line
  • 219-1620 mm SSAW pipe production line

Product Description


Working process of spiral welded pipe mill:

Uncoiling→Unwinding and Straight→Three-roll rough leveling→Vertical roll   centering→Cutting and Butt-welding→Five-roll finish leveling→Delivering→ Guiding plate→Forming→Inner welding→Outer welding→Cutting to length→  Pipe running out


Material Parameter:

Raw material

Hot rolling steel coil



Steel coil O.D.

Φ1200-Φ2000mm



Steel coil I.D.

Φ508-Φ762mm



Steel plate width

400-1250mm



Steel plate thickness

6-14mm



Material

Q235B,Q345



Max. Weight

30t



Crescent curved

<10/10mm/m




Welding Parameter:

Inner welding machine

DC-1500



Outer welding machine

DC-1500, AC-1250



Welding type

Inner single wire, Outer single submerged arc welding



Welding speed

0.5-2.6m/min



Delivering speed

0.5-3m/min



Product Pipe Parameter:

Pipe O.D.

Φ219-Φ1620mm



Pipe wall thickness

5-18mm



Helical angle

40°-85°



Pipe length

8-18m



Workshop Power Parameter:

Rotation

Right rotate



Voltage

AC-380/220V



Compressed air

0.4-0.6Mpa



Main motor installed capacity

~200KW
