Section steel line -Rolled line machinery

The section rolling mills offered by GEIT Group, with its rich experience of supplying steelmakers in China can meet demanding requirements in terms of production efficiency and product precision.

Part 1

Production scale, raw materials and product specifications

1.Production scale:Annual production of 400,000 tons of hot rolled steel

2.Raw material: Ordinary carbon structural steel, high quality carbon structural steel, low alloy steel

3.Production specifications:

 I-beam: 10#~18#

Channel steel: 8#~20#

Equal angle steel: 6.3#~15#

Ball flat steel: 14#~30#

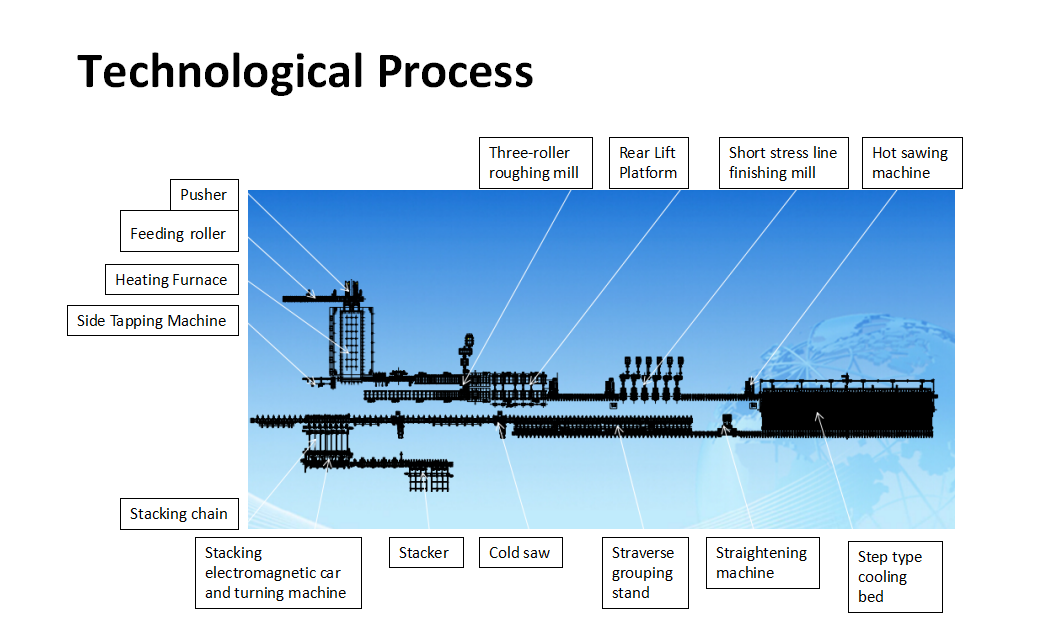

Part 2  Processflow introduction

The production process includes raw material preparation, heating, rolling, cooling and finishing processes, and the entire process is continuous automated production

Part 3

Main equipment structure parameters

1. Feeding roller table

2. Hydraulic Pushing Device

3. Side out steel machine

4. Billet removal device

5. Tilting gear

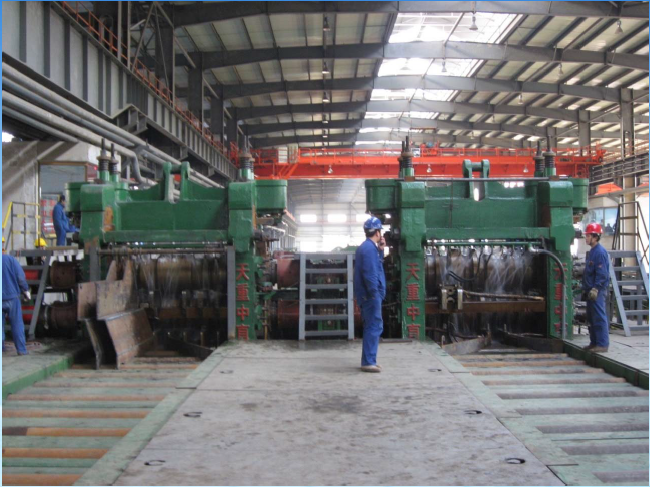

6. Three-high roughing mill

7. Rear elevator platform

8. Stationary hot saw

9. Finishing mill group

10. Cooling bed

11. Straightener

12. Grouping Platform

13. Transfer chain platform

14. Electromagnetic steel turnover machine

15. Piler

16. Collect bench
