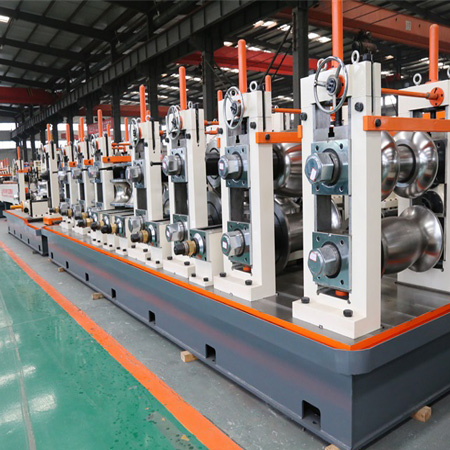

High frequency 150*150mm ERW square pipe mill?
The technical flow of the production line Steel Tape¡ú¡ú Double-head uncoiler ¡ú¡úStrip-head Cutter and welder¡ú¡úSpiral Accumulator¡ú¡úForming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame ¡ú¡úCooling unit ¡ú¡ú Sizing unit and straightener…

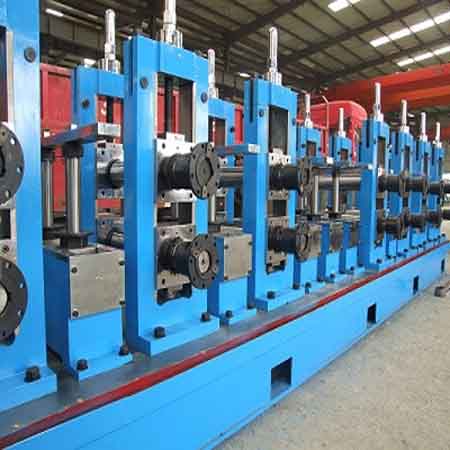

High frequency 20*406.4 mm FFX 16" Steel strip ERW pipe production mill
The High-frequency-Steel-strip-ERW-pipe-production-mill is used to process a strip coil with a thickness of ¦Ä=5.5-20mm and a plate width B=520-1350mm into a straight seam welded pipe with a diameter of ¦Õ168.3~¦Õ406.4mm, such as opening, leveling, forming and welding. It is equipped…

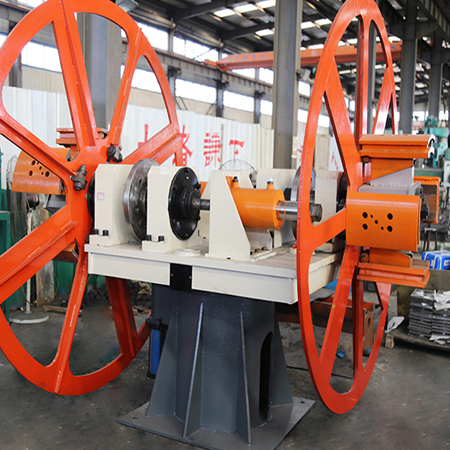

High frequency 5 1/2"~12 3/4"(¦Õ139.7~¦Õ323.9mm)ERW pipe machine
The ERW pipe mill is used to process the strip thickness ¦Ä=3-12.7mm, the plate width B=430-1020mm, the steel grade X70, N80 (Max) strip winding, leveling, forming, welding and other processes into diameter ¦Õ139.7-¦Õ323.9mm straight seam welded pipe. It is equipped…

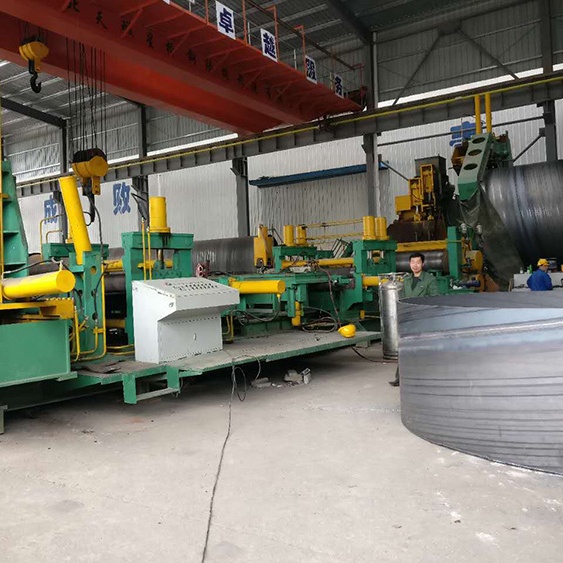

820-3220mm SSAW pipe production mill
Production application: 1.Low pressure fluid transfer pipeline, city gas transport and water supply and drainage pipeline; 2.Piling steel pipe for engineering construction; 3.Steel pipe for industrial structure; 4.Steel pipe for other uses. Materials Details Material Q235,Q345,X42-X70 Steel coil O.D. ?1200mm-?2000mm…

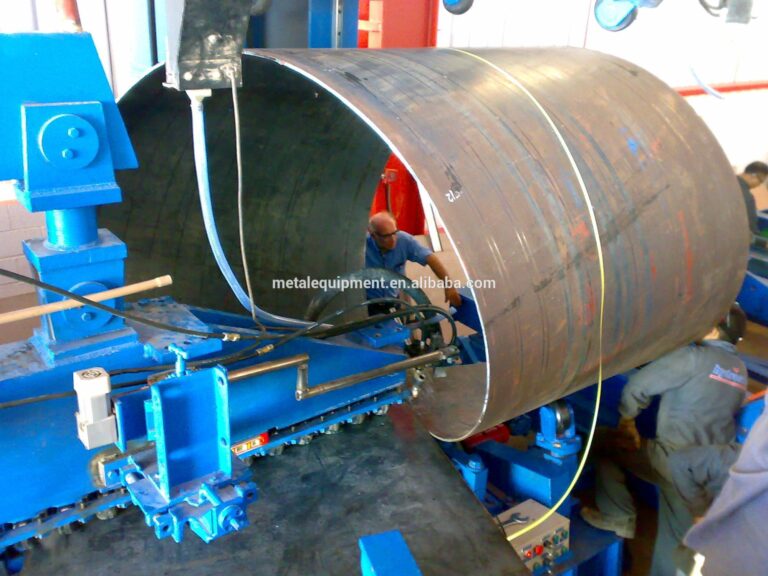

630-3220 mm SSAW pipe production mill
Product Application: 1 Low pressure fluid transfer pipeline, city gas transport, water supply and drainage pipeline; 2 Piling pipe for industrial construction; 3 Pipe for the industrial structure; 4 Pipe for other uses. Working process of spiral welded pipe mill:…

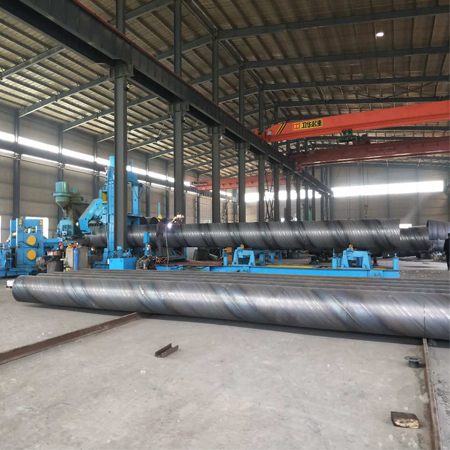

219-1620 mm SSAW pipe production line
Product Description Working process of spiral welded pipe mill: Uncoiling¡úUnwinding and Straight¡úThree-roll rough leveling¡úVertical roll centering¡úCutting and Butt-welding¡úFive-roll finish leveling¡úDelivering¡ú Guiding plate¡úForming¡úInner welding¡úOuter welding¡úCutting to length¡ú Pipe running out Material Parameter: Raw material Hot rolling steel coil Steel coil O.D. ¦µ1200-¦µ2000mm Steel…
